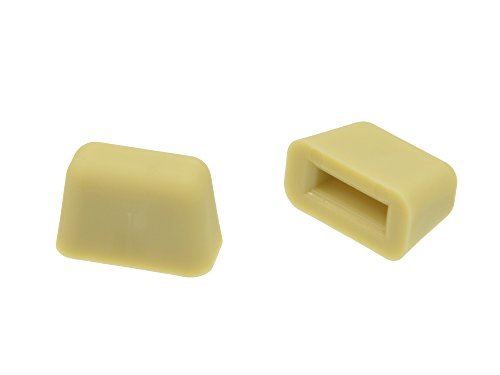

1997-2004 Corvette Headlight Stop Bumper

FEATURED 1997-2004 Corvette Headlight Stop Bumper

• See service bulletin below

*Service Bulletin Number: 00-08-42-002 Subject: left headlamp door does not stay closed (shim headlamp door motor/actuator and replace insulators) Condition: Some customers may comment that the left front headlamp door does not remain closed after the headlamps are turned off. Others may comment that the left headlamp door closes when the headlamps are turned off, but then reopens. In either case, the right headlamp door operates properly. Correction: Important The following information applies to the left front headlamp door motor/actuator only. It does not apply to and should not be performed on the right front headlamp door motor/actuator. Install one washer between the left headlamp door motor/actuator and the mounting bracket at each of the three attaching bolt locations. Also, replace the insulator, our P#445027, on each of the two mounting bracket travel stop tabs. For information on headlamp motor/actuator removal, see the Headlamp Motor/Actuator Replacement procedure in the Lighting sub-section of Body & Accessories in the Service Manual.
Corvette Central #: 445027
Original GM #: 16524060
Car years: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
